Broca espiral de metal duro integral con vástago cil.
Características: de corte a la derecha con afilado especial. Ángulo de hélice normal, espesor del alma mayor de lo normal y sin aumento del espesor del núcleo. La broca tiene un comportamiento de autocentraje muy bueno y genera viruta corta incluso en materiales de viruta larga.
Aplicación: para perforaciones de gran precisión de concentricidad con margen estrecho de tolerancia de Ø y superficies buenas. Brocas espirales de uso versátil para taladrar agujeros de hasta 3 x D con valores de corte máximos. Especialmente apropiada para materiales de viruta larga y corta como GGS y ADI, materiales de fundición, fundición gris, fundición esferoidal, fundición esferoidal y fundición maleable, altas aleaciones de AlSi y aceros aleados con resistencia de hasta 1200 N/ mm².
Longitud total
62 mm
Acero menor qué 1400 N/mm²
100
INOX ferrit./martens.
40
INOX austenítico
15
Acero menor qué 700 N/mm²
120
Acero menor qué 1000 N/mm²
110
Fundición GG/GTS
155
INOX duplex
35
Acero menor qué 1400 N/mm² f
0.08 mm/U

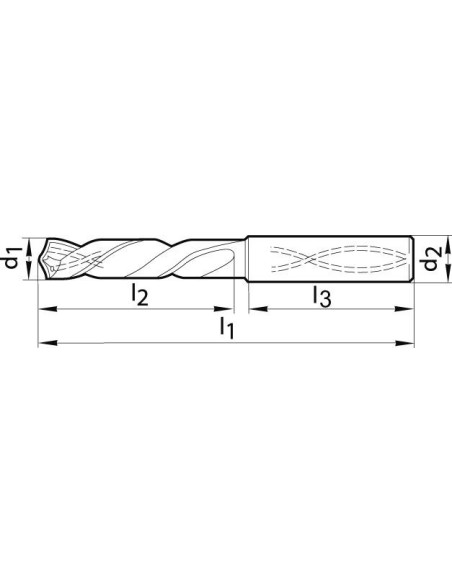

Longitud de la espiral l2
20 mm
Ø de vástago d2 h6
6 mm
Longitud de vástago l3
36 mm
Ø d1 m7
3 mm
RUBIX:
59.16253
Código de barras:
4031093605236
UNSPSC:
23241634
Tabla de Precios y Opciones
| Referencia Madriferr | Referencia Proveedor | Título | Medida | Stock |
|---|---|---|---|---|
| 59.16253 | 9056140030000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.00 mm |
48
|
| 59.16240 | 9056140031000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.10 mm |
1
|
| 59.16241 | 9056140031700 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.17 mm |
1
|
| 59.16242 | 9056140032000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.20 mm |
3
|
| 59.16243 | 9056140032500 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.25 mm |
2
|
| 59.16244 | 9056140033000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.30 mm |
1
|
| 59.16245 | 9056140034000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.40 mm |
1
|
| 59.16246 | 9056140035000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.50 mm |
3
|
| 59.16247 | 9056140035700 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.57 mm |
1
|
| 59.16248 | 9056140036000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.60 mm |
|
| 59.16249 | 9056140037000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.70 mm |
1
|
| 59.16250 | 9056140038000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.80 mm |
1
|
| 59.16251 | 9056140039000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.90 mm |
1
|
| 59.16252 | 9056140039700 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 3.97 mm |
|
| 59.16266 | 9056140040000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.00 mm |
5
|
| 59.16254 | 9056140041000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.10 mm |
1
|
| 59.16255 | 9056140042000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.20 mm |
2
|
| 59.16256 | 9056140043000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.30 mm |
2
|
| 59.16257 | 12030437 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.37 mm |
|
| 59.16258 | 9056140044000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.40 mm |
2
|
| 59.16259 | 9056140045000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.50 mm |
3
|
| 59.16260 | 9056140046000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.60 mm |
1
|
| 59.16261 | 9056140046500 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.65 mm |
1
|
| 59.16262 | 9056140047000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.70 mm |
1
|
| 59.16263 | 12030476 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.76 mm |
|
| 59.16264 | 9056140048000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.80 mm |
2
|
| 59.16265 | 9056140049000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 4.90 mm |
1
|
| 59.16280 | 9056140050000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.00 mm |
1
|
| 59.16267 | 9056140051000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.10 mm |
1
|
| 59.16268 | 9056140051600 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.16 mm |
|
| 59.16269 | 9056140052000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.20 mm |
1
|
| 59.16270 | 9056140053000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.30 mm |
10
|
| 59.16271 | 9056140054000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.40 mm |
1
|
| 59.16272 | 9056140055000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.50 mm |
1
|
| 59.16273 | 9056140055500 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.55 mm |
1
|
| 59.16274 | 12030556 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.56 mm |
|
| 59.16275 | 9056140056000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.60 mm |
|
| 59.16276 | 9056140057000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.70 mm |
|
| 59.16277 | 9056140058000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.80 mm |
1
|
| 59.16278 | 9056140059000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.90 mm |
1
|
| 59.16279 | 9056140059500 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 5.95 mm |
|
| 59.16292 | 9056140060000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.00 mm |
3
|
| 59.16281 | 9056140061000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.10 mm |
1
|
| 59.16282 | 9056140062000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.20 mm |
1
|
| 59.16283 | 9056140063000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.30 mm |
1
|
| 59.16284 | 9056140063500 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.35 mm |
|
| 59.16285 | 9056140064000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.40 mm |
1
|
| 59.16286 | 9056140065000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.50 mm |
1
|
| 59.16287 | 9056140066000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.60 mm |
1
|
| 59.16288 | 9056140067000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.70 mm |
1
|
| 59.16289 | 9056140067500 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.75 mm |
1
|
| 59.16290 | 9056140068000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.80 mm |
4
|
| 59.16291 | 9056140069000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 6.90 mm |
2
|
| 59.16305 | 9056140070000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.00 mm |
1
|
| 59.16293 | 9056140071000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.10 mm |
1
|
| 59.16294 | 9056140071400 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.14 mm |
|
| 59.16295 | 9056140072000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.20 mm |
|
| 59.16296 | 9056140073000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.30 mm |
1
|
| 59.16297 | 9056140074000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.40 mm |
1
|
| 59.16298 | 9056140075000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.50 mm |
2
|
| 59.16299 | 12030754 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.54 mm |
|
| 59.16300 | 12030760 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.60 mm |
|
| 59.16301 | 9056140077000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.70 mm |
1
|
| 59.16302 | 9056140078000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.80 mm |
1
|
| 59.16303 | 9056140079000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.90 mm |
1
|
| 59.16304 | 9056140079400 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 7.94 mm |
1
|
| 59.16306 | 9056140080000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.00 mm |
4
|
| 59.16721 | 9056140081000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.10 mm |
1
|
| 59.16722 | 9056140082000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.20 mm |
2
|
| 59.16723 | 9056140083000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.30 mm |
2
|
| 59.16724 | 12030833 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.33 mm |
|
| 59.16725 | 9056140084000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.40 mm |
1
|
| 59.16726 | 9056140085000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.50 mm |
1
|
| 59.16727 | 9056140086000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.60 mm |
6
|
| 59.16728 | 9056140087000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.70 mm |
2
|
| 59.16729 | 12030873 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.73 mm |
|
| 59.16730 | 9056140088000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.80 mm |
1
|
| 59.16731 | 9056140089000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 8.90 mm |
|
| 59.16745 | 9056140090000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.00 mm |
9
|
| 59.16732 | 9056140091000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.10 mm |
|
| 59.16733 | 12030913 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.13 mm |
|
| 59.16734 | 9056140092000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.20 mm |
|
| 59.16735 | 9056140092500 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.25 mm |
3
|
| 59.16736 | 9056140093000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.30 mm |
1
|
| 59.16737 | 12030940 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.40 mm |
|
| 59.16738 | 9056140095000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.50 mm |
1
|
| 59.16739 | 9056140095200 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.52 mm |
1
|
| 59.16740 | 9056140096000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.60 mm |
|
| 59.16741 | 9056140097000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.70 mm |
1
|
| 59.16742 | 9056140098000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.80 mm |
2
|
| 59.16743 | 9056140099000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.90 mm |
|
| 59.16744 | 9056140099200 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 9.92 mm |
|
| 59.16720 | 9056140100000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 10.00 mm |
1
|
| 59.18311 | 9056140101000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 10.10 mm |
2
|
| 59.18312 | 9056140102000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 10.20 mm |
2
|
| 59.18313 | 9056140103000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 10.30 mm |
1
|
| 59.18314 | 12031032 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 10.32 mm |
|
| 59.18315 | 9056140104000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 10.40 mm |
1
|
| 59.18316 | 9056140105000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 10.50 mm |
1
|
| 59.18317 | 9056140106000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 10.60 mm |
|
| 59.18318 | 9056140107000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 10.70 mm |
1
|
| 59.18319 | 9056140108000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 10.80 mm |
1
|
| 59.18320 | 9056140109000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 10.90 mm |
|
| 59.18332 | 9056140110000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.00 mm |
2
|
| 59.18321 | 9056140111000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.10 mm |
|
| 59.18322 | 9056140111100 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.11 mm |
|
| 59.18323 | 9056140112000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.20 mm |
1
|
| 59.18324 | 9056140113000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.30 mm |
|
| 59.18325 | 9056140114000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.40 mm |
|
| 59.18326 | 9056140115000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.50 mm |
1
|
| 59.18327 | 9056140116000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.60 mm |
1
|
| 59.18328 | 9056140117000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.70 mm |
1
|
| 59.18329 | 9056140118000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.80 mm |
1
|
| 59.18330 | 9056140119000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.90 mm |
|
| 59.18331 | 9056140119100 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 11.91 mm |
|
| 59.18333 | 9056140120000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 12.00 mm |
2
|
| 59.19425 | 9056140122000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 12.20 mm |
1
|
| 59.19426 | 9056140125000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 12.50 mm |
1
|
| 59.19427 | 9056140127000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 12.70 mm |
1
|
| 59.19430 | 9056140130000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 13.00 mm |
2
|
| 59.19428 | 9056140135000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 13.50 mm |
1
|
| 59.19429 | 9056140137000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 13.70 mm |
1
|
| 59.19431 | 9056140140000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 14.00 mm |
2
|
| 59.20215 | 9056140142000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 14.20 mm |
1
|
| 59.20216 | 9056140142900 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 14.29 mm |
|
| 59.20217 | 9056140145000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 14.50 mm |
1
|
| 59.20218 | 9056140147000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 14.70 mm |
1
|
| 59.20222 | 9056140150000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 15.00 mm |
1
|
| 59.20219 | 9056140152000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 15.20 mm |
1
|
| 59.20220 | 9056140155000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 15.50 mm |
1
|
| 59.20221 | 9056140157000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 15.70 mm |
1
|
| 59.20223 | 9056140160000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 16.00 mm |
2
|
| 59.21584 | 9056140165000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 16.50 mm |
1
|
| 59.21586 | 9056140170000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 17.00 mm |
1
|
| 59.21585 | 9056140175000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 17.50 mm |
1
|
| 59.21587 | 9056140180000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 18.00 mm |
5
|
| 59.21780 | 9056140185000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 18.50 mm |
1
|
| 59.21782 | 9056140190000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 19.00 mm |
|
| 59.21781 | 9056140195000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 19.50 mm |
1
|
| 59.21783 | 9056140200000 | Broca espiral sl wn mdi vastago fire 6537-he 3xd 3 mm | 20.00 mm |
2
|
